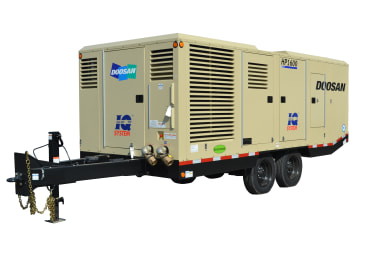

HP1600

Add Model
Add Model

Select Model

10/300 HA 12/235 HA 17/235 HA 21/215 HA 9/235 HA 9/270 HA NHP1500 PA1150C Compressor PA1200Cfs Compressor PA415ATC Compressor PA536ATC Compressor PA585ATC Compressor SHP750 Compressor XHP1070 XHP1170WCAT-T3 XP825/HP750 Add

Select Model

10/300 HA 12/235 HA 17/235 HA 21/215 HA 9/235 HA 9/270 HA NHP1500 PA1150C Compressor PA1200Cfs Compressor PA415ATC Compressor PA536ATC Compressor PA585ATC Compressor SHP750 Compressor XHP1070 XHP1170WCAT-T3 XP825/HP750 Add

COMPRESSOR

Free Air Delivery - m3/min (cfm)
Free Air Delivery - m3/min (cfm)
45.3 (1600)
Rated Operating Pressure - bar (psig)
Rated Operating Pressure - bar (psig)
10.3 (150)
10.3 (150)
Fuel Tank capacity - L
Fuel Tank capacity - L
870

ENGINE

Make/Model
Make/Model
Cummins QSX15
Emissions Level
Emissions Level
Tier 3
Tier 3
Number of Cylinders
Number of Cylinders
6
Rated Speed – rpm
Rated Speed – rpm
1800
1800
Power - kW (hp)
Power - kW (hp)
418 (560)
Electrical – volts
Electrical – volts
24
24

DIMENSIONS WITH RUNNING GEAR

Length fixed towbar - mm
Length fixed towbar - mm
7407
Length min/max adjustable towbar - mm
Length min/max adjustable towbar - mm
Width - mm
Width - mm
2289
Height - mm
Height - mm
2596
2596
Tire Size
Tire Size
215/75R17.5/H
Shipping Weight – w/o fuel – kg
Shipping Weight – w/o fuel – kg
7810
7810
Working Weight – w fuel – kg
Working Weight – w fuel – kg
8506

LESS RUNNING GEAR

Length – mm
Length – mm
5718
Width - mm
Width - mm
2289
2289
Height - mm
Height - mm
2215
Shipping Weight – w/o fuel – kg
Shipping Weight – w/o fuel – kg
7863
7863
Working Weight – w fuel – kg
Working Weight – w fuel – kg
8399
