Compare Dual-Axle & Open Frame Air Compressors Print

Print

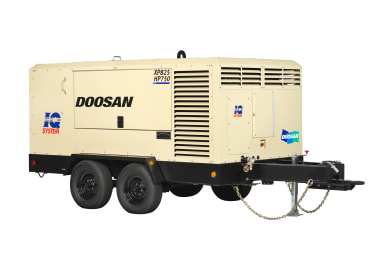

XP825/HP750

Add Model
Add Model

Select Model

10/300 HA 12/235 HA 17/235 HA 21/215 HA 9/235 HA 9/270 HA HP1600 NHP1500 PA1150C Compressor PA1200Cfs Compressor PA415ATC Compressor PA536ATC Compressor PA585ATC Compressor SHP750 Compressor XHP1070 XHP1170WCAT-T3 Add

Select Model

10/300 HA 12/235 HA 17/235 HA 21/215 HA 9/235 HA 9/270 HA HP1600 NHP1500 PA1150C Compressor PA1200Cfs Compressor PA415ATC Compressor PA536ATC Compressor PA585ATC Compressor SHP750 Compressor XHP1070 XHP1170WCAT-T3 Add

COMPRESSOR

Free Air Delivery - m3/min (cfm)
Free Air Delivery - m3/min (cfm)
23.4 (825)
21.2 (750)
Rated Operating Pressure - bar (psig)
Rated Operating Pressure - bar (psig)
8.6 (125)
10.3 (150)
8.6 (125)
10.3 (150)
Fuel Tank capacity - L
Fuel Tank capacity - L
379

ENGINE

Make/Model
Make/Model
Cummins QSB6.7
Emissions Level
Emissions Level
Tier 3
Tier 3
Number of Cylinders
Number of Cylinders
6
Rated Speed – rpm
Rated Speed – rpm
2100-1935
2100-1935
Power - kW (hp)
Power - kW (hp)
198 (266)
Electrical – volts
Electrical – volts
24
24

DIMENSIONS WITH RUNNING GEAR

Length fixed towbar - mm
Length fixed towbar - mm
5164
Length min/max adjustable towbar - mm
Length min/max adjustable towbar - mm
Width - mm
Width - mm
2291
Height - mm
Height - mm
2248
2248
Tire Size
Tire Size
ST225/75R15
Shipping Weight – w/o fuel – kg
Shipping Weight – w/o fuel – kg
3630
3630
Working Weight – w fuel – kg
Working Weight – w fuel – kg
3950

LESS RUNNING GEAR

Length – mm
Length – mm
3871
Width - mm
Width - mm
2047
2047
Height - mm
Height - mm
2004
Shipping Weight – w/o fuel – kg
Shipping Weight – w/o fuel – kg
3275
3275
Working Weight – w fuel – kg
Working Weight – w fuel – kg
3600
