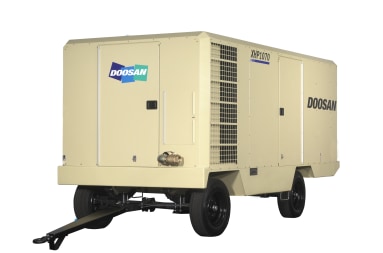

XHP1070

Add Model
Add Model

Select Model

10/300 HA 12/235 HA 17/235 HA 21/215 HA 9/235 HA 9/270 HA HP1600 NHP1500 PA1150C Compressor PA1200Cfs Compressor PA415ATC Compressor PA536ATC Compressor PA585ATC Compressor SHP750 Compressor XHP1170WCAT-T3 XP825/HP750 Add

Select Model

10/300 HA 12/235 HA 17/235 HA 21/215 HA 9/235 HA 9/270 HA HP1600 NHP1500 PA1150C Compressor PA1200Cfs Compressor PA415ATC Compressor PA536ATC Compressor PA585ATC Compressor SHP750 Compressor XHP1170WCAT-T3 XP825/HP750 Add

COMPRESSOR

Free Air Delivery - m3/min (cfm)
Free Air Delivery - m3/min (cfm)
30.3 (1070)
Rated Operating Pressure - bar (psig)
Rated Operating Pressure - bar (psig)
24.1 (350)
24.1 (350)
Fuel Tank capacity - L
Fuel Tank capacity - L
681

ENGINE

Make/Model
Make/Model
Caterpillar 3406
Emissions Level
Emissions Level
Tier 1
Tier 1
Number of Cylinders
Number of Cylinders
6
Rated Speed – rpm
Rated Speed – rpm
1800
1800
Power - kW (hp)
Power - kW (hp)
347 (465)
Electrical – volts
Electrical – volts
24
24

DIMENSIONS WITH RUNNING GEAR

Length fixed towbar - mm
Length fixed towbar - mm
6762
Length min/max adjustable towbar - mm
Length min/max adjustable towbar - mm
Width - mm
Width - mm
2250
Height - mm
Height - mm
2580
2580
Tire Size
Tire Size
N/A
Shipping Weight – w/o fuel – kg
Shipping Weight – w/o fuel – kg
6305
6305
Working Weight – w fuel – kg
Working Weight – w fuel – kg
6849.8

LESS RUNNING GEAR

Length – mm
Length – mm
4080
Width - mm
Width - mm
2250
2250
Height - mm
Height - mm
2280
Shipping Weight – w/o fuel – kg
Shipping Weight – w/o fuel – kg
5940
5940
Working Weight – w fuel – kg
Working Weight – w fuel – kg
6485
