Doosan Portable Power Latin America
/
Generadores
/
60Hz diesel rental
/
Generator Comparison - 60Hz diesel rental
Generator Comparison - 60Hz diesel rental
Compare models of 60Hz Diesel Rental Generators
Print
Print

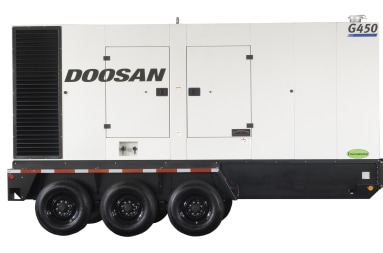

G450WCU-2B-T2
Add model
Add model
Select a model
Select a model
G145WJD-2A-T3
G185WJD-2A-T3
G240WJD-2B-T3
G25WMI-2A-T4i
G290WCU-3B-T3
G40WMI-2A-T4i
G570WCU-2B-T2
G70WJD-2A-T3
G90WJD-2A-T3
Add
Select a model
Select a model
G145WJD-2A-T3
G185WJD-2A-T3
G240WJD-2B-T3
G25WMI-2A-T4i
G290WCU-3B-T3
G40WMI-2A-T4i
G570WCU-2B-T2
G70WJD-2A-T3
G90WJD-2A-T3
Add
PRIME POWER RATING
@ 480V-3Ø, 0.8PF, 60Hz
@ 480V-3Ø, 0.8PF, 60Hz
456 kVA (365 kW ), 549 Amps
@ 240V-3Ø, 0.8PF, 60Hz
@ 240V-3Ø, 0.8PF, 60Hz
456 kVA (365 kW ), 1098 Amps
456 kVA (365 kW ), 1098 Amps
@ 208V-3Ø, 0.8PF, 60Hz
@ 208V-3Ø, 0.8PF, 60Hz
454 kVA (363 kW ), 1259 Amps
@ 240V-1Ø, 1.0PF, 60Hz 4 Wire
@ 240V-1Ø, 1.0PF, 60Hz 4 Wire
363 kVA (363 kW ), 504 Amps
363 kVA (363 kW ), 504 Amps
@ 120V-1Ø, 1.0PF, 60Hz 4 Wire
@ 120V-1Ø, 1.0PF, 60Hz 4 Wire
363 kVA (363 kW ), 1008 Amps
Voltage Configuration
Voltage Configuration
Link Board
Link Board
Frequency Capability
Frequency Capability
60Hz Only
ENGINE
Engine Make / Model
Engine Make / Model
Cummins QSX15-G9
Power Output @ 1800RPM - HP (kWm)
Power Output @ 1800RPM - HP (kWm)
544 (405)
544 (405)
Emissions Tier Level
Emissions Tier Level
Tier 2
Fuel Tank Capacity - Gal (L)
Fuel Tank Capacity - Gal (L)
574 (2173)
574 (2173)
Runtime @ 100% Load - Hr
Runtime @ 100% Load - Hr
22,2
DIMENSIONS w/ running gear
Length - in (mm)
Length - in (mm)
260.9 (6627)
Width - in (mm)
Width - in (mm)
85.9 (2182)
85.9 (2182)
Height - in (mm)
Height - in (mm)
119.8 (3043)
Weight (Ready to Run) - lb (kg)
Weight (Ready to Run) - lb (kg)
18271 (8288)
18271 (8288)
Sound Level @ 23 ft (7m) and 100% Load - dB(A)
Sound Level @ 23 ft (7m) and 100% Load - dB(A)
74
