Comparison for Reversible Vibratory Plate Compactors Print

Print

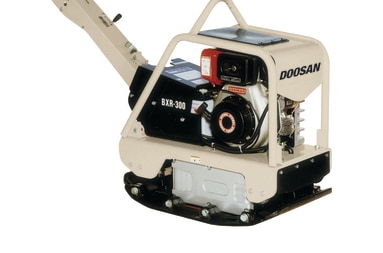

BXR-300H

Add model
Add model

Select a model

BXR-100H BXR-200H BXR-60H Add

Select a model

BXR-100H BXR-200H BXR-60H Add

WEIGHT & DIMENSIONS

Operating Weight - lb (kg)
Operating Weight - lb (kg)
716 (325)
Length - in (mm)
Length - in (mm)
63.8 (1620)
63.8 (1620)
Width - in (mm)
Width - in (mm)
17.7 (450)
Height - in (mm)
Height - in (mm)
40.2 (1020)
40.2 (1020)
Plate Size - (w x l) in (mm)
Plate Size - (w x l) in (mm)
18 x 34 (450 x 860)

PERFORMANCE

Centrifugal Force - lb (kN)
Centrifugal Force - lb (kN)
9257 (41.2)
Vibrations Frequency - vpm (Hz)
Vibrations Frequency - vpm (Hz)
4000 (67)
4000 (67)
Travel Speed - fpm (m/min)
Travel Speed - fpm (m/min)
59 (18)
Area Capacity Per Hour - sq ft (m²)
Area Capacity Per Hour - sq ft (m²)
5231 (486)
5231 (486)
Max Recommended Compaction Depth - in (mm)
Max Recommended Compaction Depth - in (mm)
16 (410)

ENGINE

Manufacturer, Type
Manufacturer, Type
Honda, gasoline
Model
Model
L70EE-DEVMS
L70EE-DEVMS
Max. Horsepower - hp (kW)
Max. Horsepower - hp (kW)
6.4 (4.8)
Engine Speed - rpm
Engine Speed - rpm
3600
3600
Starting System
Starting System
Electric
Fuel Tank Capacity - qt (L)
Fuel Tank Capacity - qt (L)
2.9 (2.7)
2.9 (2.7)
Extension Plate Set – reduces the pressure on the ground and increases surface performance
Extension Plate Set – reduces the pressure on the ground and increases surface performance
Size (w) – in (mm)/CPN
Size (w) – in (mm)/CPN
3 (76) per side/54692603
3 (76) per side/54692603
