Compare models of 60Hz Diesel Rental Generators Print

Print

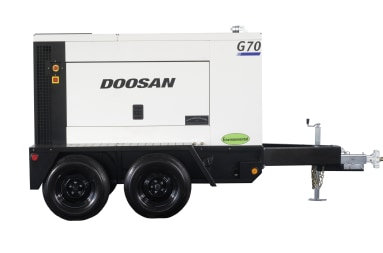

G70WJD-2A-T3

Add model
Add model

Select a model

Select a model G145WJD-2A-T3 G185WJD-2A-T3 G240WJD-2B-T3 G25WMI-2A-T4i G290WCU-3B-T3 G40WMI-2A-T4i G450WCU-2B-T2 G570WCU-2B-T2 G90WJD-2A-T3 Add

Select a model

Select a model G145WJD-2A-T3 G185WJD-2A-T3 G240WJD-2B-T3 G25WMI-2A-T4i G290WCU-3B-T3 G40WMI-2A-T4i G450WCU-2B-T2 G570WCU-2B-T2 G90WJD-2A-T3 Add

PRIME POWER RATING

@ 480V-3Ø, 0.8PF, 60Hz
@ 480V-3Ø, 0.8PF, 60Hz
73 kVA (58 kW ), 87 Amps
@ 240V-3Ø, 0.8PF, 60Hz
@ 240V-3Ø, 0.8PF, 60Hz
73 kVA (58 kW ), 174 Amps
73 kVA (58 kW ), 174 Amps
@ 208V-3Ø, 0.8PF, 60Hz
@ 208V-3Ø, 0.8PF, 60Hz
73 kVA (58 kW ), 201 Amps
@ 240V-1Ø, 1.0PF, 60Hz 4 Wire
@ 240V-1Ø, 1.0PF, 60Hz 4 Wire
58 kVA (58 kW ), 81 Amps / 45 kVA (45 kW ), 188 Amps
58 kVA (58 kW ), 81 Amps / 45 kVA (45 kW ), 188 Amps
@ 120V-1Ø, 1.0PF, 60Hz 4 Wire
@ 120V-1Ø, 1.0PF, 60Hz 4 Wire
58 kVA (58 kW ), 161 Amps / 45 kVA (45 kW ), 188×2 Amps
Voltage Configuration
Voltage Configuration
3-Position Switch
3-Position Switch
Frequency Capability
Frequency Capability
60Hz Only

ENGINE

Engine Make / Model
Engine Make / Model
John Deere 4045TF285E
Power Output @ 1800RPM - HP (kWm)
Power Output @ 1800RPM - HP (kWm)
90 (67)
90 (67)
Emissions Tier Level
Emissions Tier Level
Tier 3
Fuel Tank Capacity - Gal (L)
Fuel Tank Capacity - Gal (L)
91.9 (347.9)
91.9 (347.9)
Runtime @ 100% Load - Hr
Runtime @ 100% Load - Hr
21

DIMENSIONS w/ running gear

Length - in (mm)
Length - in (mm)
155.8 (3957)
Width - in (mm)
Width - in (mm)
68.7 (1745)
68.7 (1745)
Height - in (mm)
Height - in (mm)
82.4 (2093)
Weight (Ready to Run) - lb (kg)
Weight (Ready to Run) - lb (kg)
5260 (2386)
5260 (2386)
Sound Level @ 23 ft (7m) and 100% Load - dB(A)
Sound Level @ 23 ft (7m) and 100% Load - dB(A)
68
