Light Towers Print

Compare Light tower models
Print

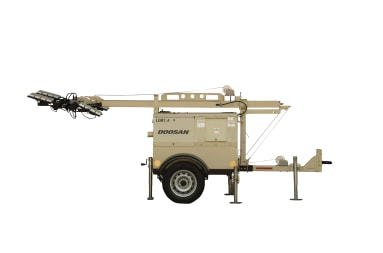

LEK1.4 Light Tower

Add Model
Add Model

Select Model

Select a model LEM1.4 Light Tower LSCK4 Light Tower LSCM4 Light Tower LVL Add

Select Model

Select a model LEM1.4 Light Tower LSCK4 Light Tower LSCM4 Light Tower LVL Add

Engine

Make
Make
Kubota
Model
Model
D1105
D1105
Power Rating - hp
Power Rating - hp
11
Number of Cylinders
Number of Cylinders
3
3
Working Speed - rpm
Working Speed - rpm
1500
Cooling System
Cooling System
Liquid
Liquid
Fuel tank capacity - lts
Fuel tank capacity - lts
104
Continuous Running Hours - hrs
Continuous Running Hours - hrs
105
105

Generator

Prime Power Rating - kva
Prime Power Rating - kva
5
Availble Voltage - volts
Availble Voltage - volts
230
230
Frequency - Hz
Frequency - Hz
50

Electrical System

Battery Rating
Battery Rating
12V 85Ah

Dimensions With Running Gear

Length - mm (in)
Length - mm (in)
4430 (171)
Width - mm (in)
Width - mm (in)
1440 (57)
1440 (57)
Height - mm (in)
Height - mm (in)
1730 (68.1)
Shipping Weight - kgs (lbs)
Shipping Weight - kgs (lbs)
695 (1532)
695 (1532)
Working Weight - kgs (lbs)
Working Weight - kgs (lbs)
787 (1735)
