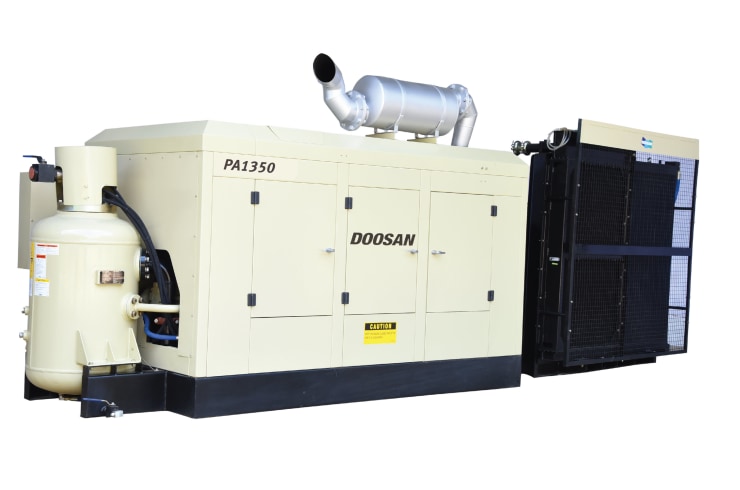

PA1350 Compressor

The Doosan Portable Power compressor model PA1350ATC is compactly designed reliable and rugged solution water well drilling between greater than 700 feet, piling work, Oil & Gas off shore utilities and rentals. The compressor is powered by a Cummins KTA1150, 585 HP reliable engine & is designed for operating between 5º to 52º C ambient with a cool box design. The unique Automatic Temperature Control System (ATC) of Doosan Portable Power ensures that the compressor ‘s operating parameters are kept optimal to ensure productivity and fuel economy even under harshest atmospheric conditions. Easy access to service points, pre-cleaners for air filters and maintenance free batteries are other hallmarks of this compressor.

PA1350 Compressor

Free Air Delivery

1350 cfm (38.2 m³/min)

Pressure

365 / 400 psi (25.17 / 27.57 bar)

Engine

Cummins - KTA1150

Features

  • Faster drilling.
  • Highly reliable and efficient airend.
  • Designed for operating in a maximum ambient of 52º C.
  • Best in class fuel consumption.
  • Automatic Temperature Control (ATC)
  • Low on maintenance.
  • Pre cleaners with twin entry filters.

PA1350 Specifications Print specs

Compressor - Rotary Screw

Engine

Electrical System

Dimensions Without Running Gear

Compatible Applications

PA1350

Water Well

7 TO 10 INCH (17.8 TO 25.4 MM)

PA1350

Water Well

7 TO 10 INCH (17.8 TO 25.4 MM)
