Medium Compressor Comparison Print

up to 675 CFM
Print

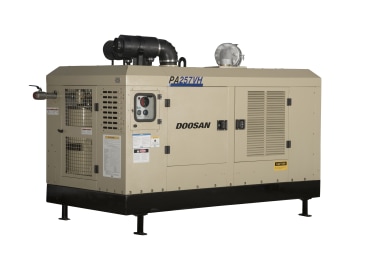

PA257VH Details

Add model
Add model

Select model

Choose a model CLA400 Compressor DA400 Compressor HP450 Compressor HP550 Compressor MHP480 Compressor MHP514 Compressor MHP675 Details P600 Details PA165 Compressor PA171H Compressor PA187VH Compressor SHP500 Compressor VHP475 Details VHP500 Compressor VHP550 Compressor VHP550C Compressor VHP675 Compressor Add

Select model

Choose a model CLA400 Compressor DA400 Compressor HP450 Compressor HP550 Compressor MHP480 Compressor MHP514 Compressor MHP675 Details P600 Details PA165 Compressor PA171H Compressor PA187VH Compressor SHP500 Compressor VHP475 Details VHP500 Compressor VHP550 Compressor VHP550C Compressor VHP675 Compressor Add

Compressor - Rotary Screw

Number of Stages
Number of Stages
1
Free-Air Delivery - cfm (m³/min)
Free-Air Delivery - cfm (m³/min)
675 (19.12)
675 (19.12)
Operating Pressure - psi (bar)
Operating Pressure - psi (bar)
210 (14.5)
Pressure Range - psi (bar)
Pressure Range - psi (bar)
100 - 225 (7 - 15.5)
100 - 225 (7 - 15.5)
Air Discharge Outlet Size - in (mm)
Air Discharge Outlet Size - in (mm)
2 (51)
Air Discharge Outlet Quantity
Air Discharge Outlet Quantity
1
1

Engine

Make
Make
Cummins
Model
Model
6CTA8.3C
6CTA8.3C
Emission Norms
Emission Norms
Non Emission
Number of Cylinders
Number of Cylinders
6
6
Power Rating - hp
Power Rating - hp
260
Rated Speed - rpm
Rated Speed - rpm
2000
2000
Idle Speed - rpm
Idle Speed - rpm
1200

Electrical System

Battery Rating
Battery Rating
24V 100Ah

Dimensions Without Running Gear

Length - mm (in)
Length - mm (in)
2700 (107)
Width - mm (in)
Width - mm (in)
1450 (57)
1450 (57)
Height - mm (in)
Height - mm (in)
1800 (71)
Gross Weight - kgs (lbs)
Gross Weight - kgs (lbs)
2900 (6393)
2900 (6393)
