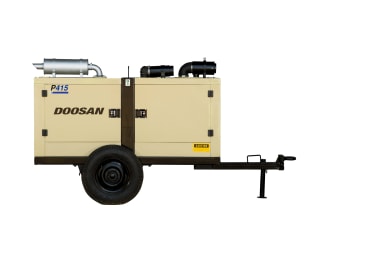

P415 Compressor

Add model
Add model

Select model

Select a model EP300 Electric HP415 Compressor P250 Compressor P315 Compressor P360 Compressor XP315 Compressor Add

Select model

Select a model EP300 Electric HP415 Compressor P250 Compressor P315 Compressor P360 Compressor XP315 Compressor Add

Compressor - Rotary Screw

Number of Stages
Number of Stages
1
Free-Air Delivery – cfm (m³/min)
Free-Air Delivery – cfm (m³/min)
415 (11.75)
415 (11.75)
Operating Pressure - psi (bar)
Operating Pressure - psi (bar)
100 (7)
Pressure Range - psi (bar)
Pressure Range - psi (bar)
55 - 120 (3.8 - 8.3)
55 - 120 (3.8 - 8.3)
Air Discharge Outlet Size - in (mm)
Air Discharge Outlet Size - in (mm)
0.75 (19) & 1.5 (38)
Air Discharge Outlet Quantity
Air Discharge Outlet Quantity
5 & 1
5 & 1

Engine

Make
Make
Ashok Leyland
Model
Model
ALUW04CT
ALUW04CT
Emission Norms
Emission Norms
Non Emission
Number of Cylinders
Number of Cylinders
4
4
Power Rating - hp
Power Rating - hp
115
Rated Speed - rpm
Rated Speed - rpm
2500
2500
Fuel tank capacity - lts
Fuel tank capacity - lts
100
Idle Speed - rpm
Idle Speed - rpm
1500
1500

Electrical System

Battery Rating
Battery Rating
12V 65Ah

Dimensions with Running Gear

Length - mm (In)
Length - mm (In)
3200 (126)
Width - mm (In)
Width - mm (In)
1615 (64)
1615 (64)
Height - mm (In)
Height - mm (In)
1870 (74)
Shipping Weight - kgs (Ibs)
Shipping Weight - kgs (Ibs)
1330 (2932)
1330 (2932)
Working Weight - kgs (Ibs)
Working Weight - kgs (Ibs)
1445 (3185)
